Equipment Overview

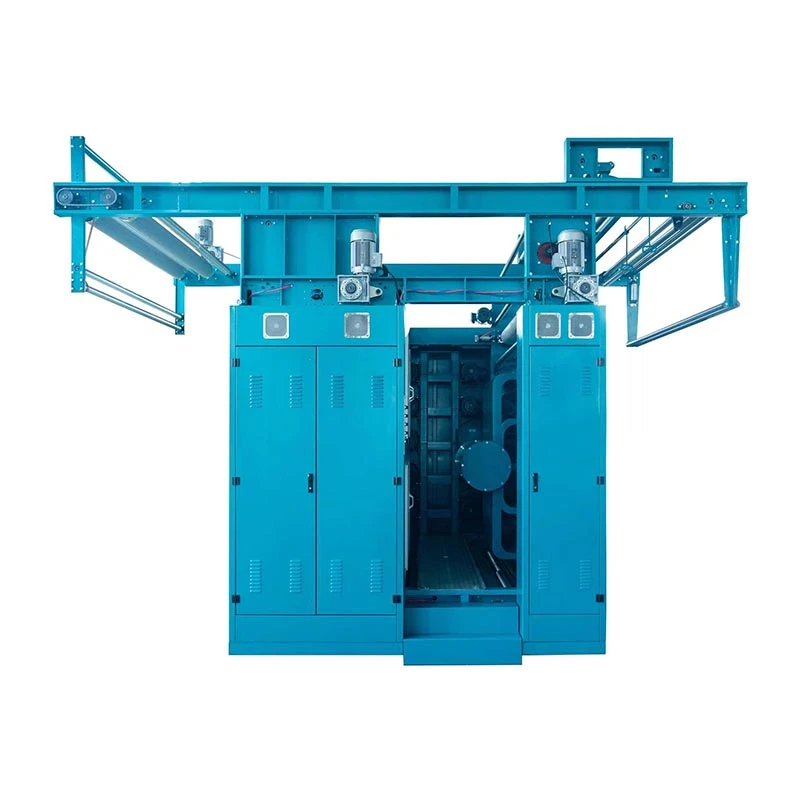

This machine is a vertical sanding/sueding machine specially designed for knitted, woven, and non-woven fabrics. By using high-quality sandpaper wrapped rollers to friction the fabric surface at high speed, it produces uniform and dense pile, giving the fabric a soft and full hand feel, significantly enhancing the added value and comfort of the fabric. The vertical structure ensures smoother fabric running, making it particularly suitable for high-demand finishing production lines.
Working Principle
The fabric enters the machine under specific tension and comes into contact with the high-speed rotating sandpaper rollers. The vertically arranged rollers provide a more scientific contact angle between the fabric surface and the sandpaper. Through progressive abrasion, surface floating fibers are removed while the base pile is raised, ultimately achieving a delicate peach-skin-like texture.
Key Advantages
Stable Vertical Structure
Reasonable fabric path ensures uniform tension distribution, effectively preventing wrinkles and weft distortion, especially suitable for light and thin fabrics sensitive to tension.
Flexible Multi-Roller Combination
Available in 6-roller and 10-roller configurations. More rollers mean higher efficiency in a single pass. Each roller is driven by an independent motor with adjustable speed to meet different fabric requirements.
Efficient Dust Removal
Equipped with a powerful dust extraction system that promptly removes sanding dust, keeping the workshop clean and preventing dust from re-adhering to the fabric surface.
Intelligent Control System
Equipped with a PLC touch screen interface for precise setting of roller speed, fabric tension, and contact pressure. Supports process parameter storage and recall for quick order changeovers.
Technical Specifications
| Machine Name | Vertical Sueding Machine |
| Model | 6 Rollers / 8 Rollers /10 Rollers |
| Working Width | 1800mm - 3600mm(Customizable) |
| Machine Speed | 0 - 60 m/min |
| Roller Diameter | φ215mm |
| Installed Power | 25 kW - 55 kW(Depends on width) |
Applications
- Apparel Fabrics: Sanding finishing for peach-skin, flannel, and coral fleece
- Home Textiles: Raising treatment for sanded bed sheet sets and blankets
- Technical Textiles: Industrial fabrics requiring surface modification
